Projects:2016s1-132 RF Transceiver Design for a Portable Radar

Supervisors

Dr Brian Ng, Dr Hong Gunn Chew

Students

Benjamin Arthur, Nicholas Aspinall

Introduction

Aim

This project aims to implement a portable Radar transceiver capable of measuring a target's range and radial velocity. The transceiver shall be implemented into a PCB (Printed Circuit Board) containing RF and analogue subsystems and audio input/output to a computing system for processing and display. The system shall have a range resolution smaller than 2m and a range of approximately 100m for a target with a radar cross section of 1m squared.

Motivation

The goal of the project is to produce a miniaturised transceiver system for the Honours Project radar. Working on this project will extend the team members knowledge of how radar works, as well as provide a deeper understanding of the RF engineering and signal processing that lies behind radar. Additionally, this project will provide experience in printed circuit board (PCB) design at microwave frequencies. Radar is an important concept in modern electronics, and has applications in many different areas, including aviation, astronomy and meteorology.

Objectives

• To design and build a relatively cheap, effective, and small transceiver subsystem for the Honours Project radar.To meet these requirements, the transceiver will be implemented on a PCB using off the shelf SMD (surface mount device) components, rather than the expensive SMA connectorised components used in the original MIT design.

• To improve the range and resolution of the radar as much as possible, within the bandwidth and power limitations of the radar. Due to legal requirements on spectrum usage, there is an output power limit of 4 W EIRP (equivalent isotropic radiated power), and a bandwidth limit of 83.5 MHz, from 2400 MHz to 2483.5 MHz. However, the radar has been designed for an output power of 1 W due to budgetary constraints.

• To design a video amplifier system to replace the 2015 design. The reason for designing a new video amplifier is so that it can be integrated with the transceiver rather than exist as a separate component, as was the case for previous years of the radar project.

Background

General Principle

At the most basic level, a radar system works by transmitting a high-frequency radio signal in a certain direction, and detecting and processing reflections of this signal to determine whether an object exists in that direction.

Generally, the most important consideration for radar design is the amount of power received from these reflections at the receiving antenna. The received power can be calculated from the radar equation.

The radar equation shows that the received power is directly proportional to the transmitted power, the gain of the antennas squared, the wavelength of the transmitted signal squared and the scattering coefficient sigma of the target object. The received power is inversely proportional to the distance from the radar to the target object raised to the fourth power.

Of these parameters, we are only concerned with transmitted power P and range R. The radar is designed to output an effective radiated power (ERP) of 1 W, and has an upper limit in frequency of 2.4835 GHz, which corresponds to a wavelength of 12 cm. Since the antenna gain G and wavelength lambda will not change, in order to get the most received power, it is necessary to transmit as close to the transmit power limit of 1 W as possible.

The Honours Project radar is a frequency modulated continuous wave (FMCW) radar, and has two modes of operation: Doppler mode and Range mode, which will be discussed in later sections.

Radar Performance

The performance of a radar system is characterised by its maximum range and range resolution. The maximum range is the maximum distance at which the radar can detect the presence of an object. The range resolution of a radar is the ability to differentiate between close targets. For example, a radar system with a resolution of 5 m would not be able to resolve two people standing side by side; they would appear as one object on the radar.

By rearranging the radar equation for range, it is possible to make an estimate for the maximum range of the Honours Project radar system. An optimistic estimate for the range is approximately 96 m. The range resolution is based on the frequency range, and for this project is approximately 1.8 m.

Doppler Mode

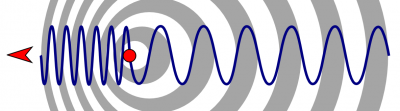

The Doppler effect is the name given to the phenomenon of a change in the frequency of a wave when the observer is moving relative to the source of the wave. Many people have observed this effect in their lives when a vehicle with a horn drives past; the horn appears to be of a higher pitch when the vehicle moves towards you, and of a lower pitch when it moves away. The velocity of the source can be related to the perceived frequency of the wave and the waves actual frequency.

The Doppler effect applies to all waves, including the radio waves transmitted by radar. With the Doppler effect, the velocity of an object can be detected by a radar system. This is easiest when using continuous wave (CW) transmission. When the sine wave transmitted by the radar reflects off of a moving object, the reflected wave will have a different frequency to the original transmitted wave.

By mixing the transmitted and received waves, an intermediate frequency (IF) waveform is produced, which contains the sum and difference of the frequencies of the transmitted and received waves. The difference component of the IF signal will be at the Doppler frequency fd. This frequency value can be substituted for fd, along with the frequency of the transmitted signal f in order to find the velocity of the object v. A simplified simulation of the effect of mixing is shown below. In this example, the target object is moving away from the radar, as the frequency of the received signal is greater than the frequency of the transmitted signal.

The Doppler Mode of the radar has some limitations. Due to how the Doppler effect works, any stationary objects will not be detected by the radar, as well any objects moving tangentially to the radar. This is because only the component of the objects velocity that is radially towards or away from the radar can be detected. This also means that the velocity of an object not travelling directly towards or away from the radar will be less than the true velocity of the object, since only the radial component of the velocity is detected.

Range Mode

The range mode of the radar uses an FMCW signal to detect the distance of objects from the radar. It is not enough to use a CW signal; the signal must also be frequency modulated, resulting in what is called a chirp signal. A chirp signal is a signal for which the frequency changes with time. By using a time-varying voltage as the input to a voltage controlled oscillator (VCO) several different chirps can be used. Some common waves used for producing chirps are sawtooth, triangular, and square waves. For the Honours Project radar, the chosen modulation is a triangle wave, due to properties it has that make processing the received signal simpler.

When the radar transmits the chirp signal, it will receive a reflected, frequency shifted signal off of a detected object if one exists, and the transmitted and received signal will be mixed together as was the case for the Doppler Mode of the radar. However, the waveform in the Range Mode is more complicated, since the frequency is not constant, resulting in the IF signal shown here.

The image above shows that there is a high frequency component on the order of GHz, and a low frequency component on the order of kHz produced in the mixing process. The higher frequency component is not of use in the calculation of range, and can be easily removed in the signal processing stage, or with the application of a low pass filter after the mixer. After removing the high frequency component, all that is left is the low frequency component. In this low frequency component, the flat lines highlighted by rectangles in the image are what is used to calculate the range. Note that the image shows an idealised scenario of the range mode mixing, which differs from what would be seen in a real world case. However, the principles described here still apply.

The range of the object can be calculated using this frequency component, along with the bandwidth of the transmitted signal and the period of the wave used to generate the chirp.

PCB Design Considerations

A printed circuit board (PCB) is a compact board base designed to house a specific circuit. An advantage of using PCBs is that there is no need to worry about wires, since all connections between components are contained in the PCB itself in tracks of copper. Additionally, a circuit implemented on a PCB will often be much smaller than the same circuit implemented onto a breadboard. PCBs are used in almost every piece of modern electronics, from phones to computers to washing machines.

Many PCBs operate at DC or low frequencies, but in some applications, including radar, a PCB will be using high frequency signals. At low frequencies, the wavelength of the signal will be several metres in size; much larger than the size of the PCB, and so the voltage across the PCB can be considered to be constant. In high frequency applications however, the wavelength of the signal is comparable with the size of the PCB, meaning that the voltage can vary greatly across the PCB and cause it to function in unexpected ways. For example, the traces can operate like an antenna and interact with other parts of the circuit in unpredictable ways. To prevent behaviour like this, there are rules for designing PCBs at microwave frequencies (frequencies between 300 MHz and 300 GHz). Note that as the IF signal produced by the mixer is of a low frequency, on the order of kHz, these rules do not apply to the video amplifier segment of the PCB. The most important design considerations for the RF sections of the PCB are listed below:

• The circuit needs impedance matching at 50 ohms, in order to reduce losses and the voltage standing wave ratio (VSWR). The impedance of the traces on the PCB can be controlled by varying their width. This applies for any trace of greater length than the critical length, which is approximately 4.3 mm for this project.

• It is important to have a ground plane in the PCB for easy connections to ground using vias, which helps to keep traces short. Additionally, filling unused space in the component plane with copper, and connecting this fill to the ground plane with vias will help prevent interference.

• Via-hole connections to the ground plane should be placed approximately 1/10th to 1/20th of the wavelength of the signal apart, connecting the top plane to the ground plane in order to reduce coupling and interference from nearby sources.

• Parallel traces should be avoided when possible, in order to prevent coupling.

• No trace should make a 90 degree turn. This is in order to minimise reflections. Examples of good and bad turns in PCB traces are displayed in the image below.

There are also guidelines to follow for the power supply traces in the PCB. These considerations are also very important, and can potentially cause problems if neglected.

• If possible the power traces should be routed on a separate layer to the component traces.

• Power traces should be as large as possible in order to be able to carry the required current to components.

• For sensitive RF components where noise is a large concern (for example the LNA) power decoupling should be performed in order to reduce noise coupling into the component.

Design

Transceiver Design

The initial design was approved by the supervisors of the project in Week 9, Semester 1, though the design has been updated since then with the supervisors' knowledge. The major changes between the initial design and the design shown here are the replacement of the original voltage controlled oscillator (VCO), the JTOS-2700V+, with the ROS-2536C-119+ VCO, and the addition of the TCCH-80+ RF choke. The design is shown below with expected power levels for a target at 50 m from the radar. The transmit chain consists of the top row of components, and the receive chain consists of the bottom row of components.

The design goal of the transceiver system is to produce an IF output from the mixer that contains information about the target of the radar. In order to realise this goal there are three components that constitute a minimum requirement: the VCO, the splitter, and the mixer.

• VCO:

The VCO is required to generate the signal that will be transmitted from the radar. As explained in the Doppler and Range sections, either a sinusoidal signal or a chirp signal is needed to obtain information about the velocity or range of the target relative to the radar.

• Splitter:

The splitter is required so that a copy of the original signal can be compared with the frequency shifted signal that will be received by the radar after the signal has been reflected by the target.

• Mixer:

The mixer is required to obtain the sum and difference frequency components between the original chirp signal generated by the VCO and the received chirp signal. The IF signal produced at the output of the mixer contains information about the range of the target from the radar that can then be extracted using signal processing techniques.

Fundamentally, the functionality of the transceiver system is achieved by the three components listed above. In order to improve the effectiveness of the system as much as possible additional components such as amplifiers and band-pass filters are included in the design. The amplifiers boost the power of the transmitted and received signals, improving the range of the radar, and the filters eliminate frequencies outside of the range of interest, both on the transmit and receive chain. This helps to eliminate noise and to ensure that the radar does not transmit outside of the legal range of frequencies.

A brief explanation for each of the components of the design and the reasons for choosing them is included here.

VCO: ROS-2536C-119+

The VCO generates the transmitted wave based on the input voltage waveform. A chirp signal is produced by inputting a time varying waveform, and a sine wave is produced by inputting a constant waveform. The ROS-2536C-119+ was chosen for its high output power and low input power requirements, in addition to having a more tightly constrained output frequency range. This narrower frequency band results in the ROS-2536C-119+ having better phase noise characteristics than alternative VCO options.

Splitter: SPU-2U2+

The splitter separates the transmit waveform into two copies. Ideally these copies are identical in amplitude and phase, but this is not always the case. Additionally, it is possible to correct unbalances in the signal processing phase. It is necessary to have a copy of the transmit signal so that it can be mixed with the received signal for signal processing, as described in the Doppler and Range sections. The SPU-2U2+ was chosen for its low amplitude unbalance and low phase unbalance characteristics.

Transmit Chain Amplifier: PMA-5456+

The transmit chain amplifier boosts the signal as much as possible before transmission. This is to make sure that the transmit power of the antenna is as close to 1 W (or equivalently 30 dBm), as possible. However, if the power through the amplifier is too much, the signal can compress and act in a non-linear fashion. To avoid this the PMA-5456+ was chosen, as it has an appropriate gain and low noise characteristics, as well as a high 1 dB compression point. Because this design aims to stay well below the 1 dB compression point, it was not necessary to consider the third-order intercept point, since this point is always above the 1 dB point.

RF Choke: TCCH-80+

The RF choke blocks high frequency RF signals, while allowing low frequency signals through, such as the DC bias for the amplifier. A specially made choke is used here in place of a regular inductor due to its higher effectiveness in blocking RF signals. This is particularly important for the amplifier, as it is important that there is as little noise introduced to the transmitted signal as possible.

Band Pass Filter: BFCN-2435+

The band pass filter acts a safety measure, ensuring that no out-of-band components are transmitted. The same filter is used in the receive chain after the low noise amplifier (LNA), to ensure that any out-of-band components picked up by the receiver are not sent into the mixer, as this could affect the results. The BFCN-2435+ was chosen for its pass and stop band characteristics.

Receive Chain Amplifier: PMA4-33GLN+

At the receive antenna, it is expected that the level of power will be very low, so an LNA is required. An LNA is used because when working with very low power levels, it is important to minimise noise as much as possible, to avoid corrupting the received signal. The PMA4-33GLN+ was chosen for its low noise characteristics and high gain. Unlike the transmit chain receiver, the 1 dB compression point does not factor into the choice of amplifier, since the power levels in the receive chain are so small.

Mixer: HMC215LP4

The mixer was the most difficult component to decide on, since there are many factors to consider. The HMC215LP4 is a Level 17 mixer, meaning that the mixer operates with a large difference between the local oscillator (LO) signal from the transmit chain and the RF signal from the receive chain. Additionally, the HMC215LP4 has low input and output return losses, and a low noise figure. A drawback of the HMC215LP4 is that as it is a diode mixer as opposed to a transistor mixer, when the power difference between the LO and RF signals is too low, the diodes will deactivate and the mixer will not function. For this design, the mixer will not work when the target object is less than 6 m from the radar system. When an object is less than 1.2 m from the radar system, the mixer will saturate, which could potentially damage the circuit. This problem could be avoided in future designs by limiting the maximum power produced at the output of the LNA.

Video Amplifier Design

The purpose of the video amplifier is to amplify the IF signal produced by the mixer at the output of the transceiver to suitable levels for signal processing. Without this component, the power level of the IF mixer would be approximately -18 dBm at most. To achieve the best possible range of detection for the radar, the IF signal needs to be boosted, necessitating the presence of the video amplifier.

Two designs for the video amplifier were produced, referred to as Design 1 and Design 2. Design 1 was the more complex of the two, and made use of automatic gain control (AGC) to vary the gain of the amplifier depending on the power of the input signal to produce an output at a constant voltage. Design 2 was a more straightforward amplifier with a constant gain, so that the output from the video amplifier will vary as the power of the IF signal from the mixer varies.

Design 1.

Design 2.

Each design uses a 5 V supply, and can therefore be easily integrated onto the same PCB as the transceiver system. The components used for Design 1 and Design 2 were the AD8338 and the ADA4895-2 respectively. The circuit schematic for each design was made by following the recommended circuit as outlined in the datasheet for each device.

In the final transceiver PCB design, both designs for the video amplifier were included in the board. This was to improve the circuit reliability by having alternative options for the video amplifier, as it was feared that Design 1, being more complicated, may not have functioned as expected.

Transceiver PCB Design

In designing the transceiver PCB, there were two important design considerations: impedance matching and the use of a board with multiple layers.

• Impedance matching:

In order to have maximal power transfer throughout the board, all traces need to be impedance matched. The board is matched at 50 ohms. As a consequence, the board used for manufacturing needs to have both a low thickness and a high dielectric constant to keep the width of the traces small. The board model used in the final version of the transceiver PCB was FR-4.

• Multiple layers:

A multilayer board would greatly improve the effectiveness of the board, as it allows for a ground plane to be included in the design. As noted in the PCB Design section, having a ground plane allows for easy connections to ground using via-hole connections, keeping the traces short, as well as helping to prevent interference from external sources. Additionally, the use of a multilayer board simplifies the DC power routing. By routing the DC power on a separate layer to the RF components layer, which by necessity is very tightly spaced, power can be easily provided to RF components without compromising the width of the power trace (current capacity is dependent on track width).

The process of producing the final transceiver PCB design encompassed three major phases: the schematic design, footprint creation, and board layout.

• Schematic design:

The first step of the PCB design was to produce a schematic of the circuit in Altium Designer, shown in Figure~\ref{fig:RF_schematic}. The schematic was made based on the transceiver design described in the Transceiver Design section. The capacitors, inductors and resistors used in the design were chosen based on the recommended circuit layout from the datasheet for each component.

• Footprint creation:

For each major component used in the PCB, a footprint was constructed based on the measurements of the component given by its datasheet. Given that the components used in the design are quite small, the footprints were required to be as accurate as possible, as even a slight misalignment between the footprint and the component has potential to cause major issues. For more commonplace components such as capacitors, inductors and resistors, footprints provided in Altium Designer were used.

• Board layout:

The transceiver PCB design was a heavily iterative process. Each iteration of the design was checked by both team members, and members of the university technical staff were frequently consulted for their advice. Care was taken during this phase of the design to follow the considerations outlined in the PCB Design section for the RF sections of the board. The layout for each component was based on a PCB layout recommended by the manufacturer for that specific component. Via-hole connections to the ground plane in close proximity to RF components were also placed according to recommended layouts. For the video amplifier there was more flexibility in the placement of components and via-hole connections, since as the video amplifier is not working at RF frequencies the RF design considerations do not apply.

The version of the transceiver PCB used for manufacturing is shown below.

Results

Final Design

The PCB was manufactured using Entech electronics, using FR4 board material with a thickness of 1.6 mm and a dielectric constant of epsilon = 4.2 . Due to cost constraints a stencil cut out could not be purchased and the board was soldered by hand in house.

Transmit System Results

The first testing began on the transmitting system, applying a voltage to the VCO and measuring the frequency and frequency output of the system by connecting the output directly to a spectrum analyser. The cables used for measurements were found to have significant losses, and losses were measured using the RF signal generator at each power and frequency measured from the transmit system.

The transmitting system consists of the power amplifier and bandpass filter. From pre-calculations, the expected transmit power is 14 dBm

For the bandwidth of 2.4GHz to 2.5GHz, as required for this system, a minimum voltage of 2.1331V and a maximum voltage of 3.5803. Hence the transmission signal is a 50% duty cycle sawtooth wave, with a DC offset of 2.1331V, an amplitude of 2.8944V and a PRF of 200Hz.

The transmission power was smaller than expected theoretically, comparing to the data sheets, with measurements of 3dB lower power levels than expected.

The variations in power with frequency would be a result of changes of impedance in the transmission due to changes in frequency.

The receive chain was not operational upon fabrication. Testing of the chain with an input frequency of 700MHz and power of -30dBm netting an output power of 5dBm as expected at the amplifier output. Upon visual inspection of the mixer the alignment was off, and attempts to fix this issue were not successful.

PCB Design 2.0

After the manufacture of the initial PCB design, errors in layout were corrected and is present in the final PCB.

The changes are relevant to the practical manufacture and bypassing. The DC power supply has been flipped into it's correct place, and the circular through holes have been replaced with rectangular plated through holes. The capacitor DC input bypassing capacitor has been moved to accommodate for the size of the DC power jack, and so has the capacitor discharge resistor. Thermal relief has been added to the SMA jacks, to assist with soldering. Two more bypassing capacitors have been placed at the transmit amplifier, to better assist with bypassing at that point, particularly noise present from leakage of the VCO. Implemented is an amplifier for the VCO input, decreasing the drive required on the input source.

Conclusion

This thesis outlines the steps taken to design a portable Radar system into a PCB based implementation. The objective characteristics were a range resolution smaller than 2 and a range of approximately 100m for a target with a radar cross section of 1m^2

Through the analysis of different radar architectures and waveforms a stretch processing system was decided upon.The designed system had a theoretical range resolution of 1.8m and a maximum range of 100m.

Although the system was deemed not operational at completion, the transmitter system was operational, tested and voltage waveforms designed for its use. The fabricated system had increased portability comparing to previous works outlined in.

Although the manufacture objectives of the project were not met, the design objectives were and further work and manufacture of PCB design 2.0 will result in an operational system with the referenced above characteristics.
