Projects:2017s1-101 Classifying Network Traffic Flows with Deep-Learning
Contents
Project Team
Clinton Page
Daniel Smit
Kyle Millar
Supervisors
Dr Cheng-Chew Lim
Dr Hong-Gunn Chew
Dr Adriel Cheng (DST Group)
Introduction
The internet has become a key facilitator of large-scale global communications and is vital in providing an immeasurable number of services every day. With the ever-expanding growth of internet use, it is critical to effectively manage the underlying networks that hold it together. Network traffic classification plays a crucial role in this management, providing quality of service, forecasting future trends, and detecting potential security threats. For these reasons, accurate network traffic classification is of great interest to internet service providers (ISPs), large-scale enterprise companies, and government agencies alike.
Current methods of network traffic classification have become less effective in recent years due to the increasing trend of obscuring network activity, whether it be for security, priority, or malicious intent [1, 2, 3]. Therefore, in today’s network there arises a need for a more effective classification algorithm to handle these conditions.
Within this research, the following types of classifiers were produced using three different methods:
- Application traffic classification – in which the flows of 10 common web-based protocols or applications were classified as their respective classes, and unknown or other flows were classified as Other.
- Malicious classification – in which the flows of 6 malicious traffic types were classified as their respective classes, and non-malicious application or other flows were classified as Other.
- Malicious detection, in which the model would output whether or not the traffic was malicious. This model used two classes – malicious and non-malicious.
Objectives
- Gain knowledge about the application of deep-learning for classifying network traffic flows
- Conduct experiments on synthetic traffic flows and/or make use of communications flow data from real-life enterprise networks
- Develop network traffic classifying software using deep-learning techniques to an acceptable accuracy when comparing against the results of previous years
Relevant Work
Extensive research has been performed on network traffic classification. Common techniques include port-based classification and deep pack inspection (DPI). Port-based classification performs poorly due to the usage of non-standard port numbers, and DPI requires updates to recognise unseen classes of network traffic. Moore and Papagiannaki [4] found that using port-based classification as the sole classifier resulted in classification accuracies of less than 70%. nDPI, an open-source tool for investigating traffic using DPI, shows that a high classification accuracy (around 99%) can be achieved for standard applications but will deteriorate depending on how common the application is or whether it has been encrypted [5].
The use of machine learning techniques for network traffic classification has therefore been researched extensively to tackle the problems with these traditional methods. Previous iterations of this project have investigated using various machine learning techniques to preform network classification. In the 2014, tree based and support vector machines (SVM) algorithms were investigated. Using the Universitat Polit`ecnica de Catalunya (UPC) data set [6] they were able to classify botnet traffic from legitimate traffic with up to 94% classification accuracy using decision trees and 89% classification accuracy using SVM techniques [7]. In 2016, 10 graph-based methods which utilised spatial traffic statistics were explored and achieved classification accuracies up to 95% using the same UPC data set [8].
Auld et al. [3] investigated the use of statistical data (e.g., number of packets per flow) as inputs to a neural network. The study used Bayesian Neural Networks and created a model using 246 selected flow level features. A list of the most valuable features was then created based on the weightings in the neural network, and included in the report. With this method, an accuracy of 95.8% was achieved with over 200 features.
Trivedi et al. [9] found similar results utilising a neural network to classify network traffic based upon the variance of packet lengths. Comparing the neural network against a clustering approach, it was found that a neural network could both achieve a better classification as well as take less time to train.
As the utilisation of deep learning has been a relatively recent addition to the field of machine learning, only few papers have considered their use in network traffic classification. Wang [1] showed that utilising the first one thousand bytes of a network flow’s payload could prove an effective input for a deep (multilayered) neural network. Although the paper was lacking in overall detail about their implementation and information about the data set used, the results showed promising results for the utilisation of deep learning in network traffic classification.
Background
Network Flows
The term ‘flow’ can be thought of as conversation between two end points on a network. These two end points will exchange packets with each other until this conversation ends. Packets consists of two sections, the header section which holds information about the packet (e.g., destination and source address), and the payload section which holds the message that will be delivered to the recipient. An individual flow has been defined as the unidirectional or bidirectional exchange of packets containing the same five key properties [10]:
- Destination IP address
- Source IP address
- Destination port address
- Source port address
- Transport layer protocol (TCP or UDP).
Machine Learning and Deep Learning
ML is a subset of artificial intelligence (AI) that uses pattern recognition to classify or make predictions from a given set of data. This project will focus on one area of ML in particular, supervised learning. Supervised learning is a type of learning algorithm which uses the desired output (in the case of this report, the correct classification of network traffic) to assess the performance of a model and make corrections based upon the difference between its prediction and the correct classification [11].
Artificial neural networks (ANN, or alternatively simplified to NN) are a subset of machine learning that are formed on the basis of designing mathematical models to mimic how biological neural networks compute information. There are many different types of NNs but the foundation of which, is a network of simple processors, referred to as nodes or neurons, which communicate through numerous connections to other nodes within the network [12] (refer to Figure 2). NN are structured in layers; it is these layers that hold the distinction between deep neural networks and other NNs. A typical NN will be divided into three layers, the input, hidden, and output layer. When a NN is made up of multiple hidden layers it is said to be a Deep Neural Network (DNN). Deep learning is the process of using these deep neural networks for machine learning.
Convolutional Neural Networks (CNNs) are a type of NN that differ from traditional feed-forward reverse propagation by how data is presented to the network. CNNs are passed in data in the form of an image which is then filtered and processed by a neural network to extract an output prediction. Convolutional neural networks have been shown in industry to achieve high performance but require their input to be in the form of an image.
Precision and Recall
In terms of comparing ML algorithms it is not always prudent to compare the overall accuracy of the models. Take for example a ML model which aims to identify all malicious sample in a set of 100 results. If there is only 1 malicious sample in this set, the model can still achieve a 99% accuracy by classifying every sample as non-malicious. Two metrics that help to measure this imbalance are precision and recall [13].
A confusion matrix is used to show the prediction versus the true classification for every class in the system. For example, a confusion matrix for the previous example can be seen below. It should be noted that here the positive class has been identified as the malicious sample. It can be seen that as the example model does not correctly identify any malignant samples it will have a precision and recall of zero.
| Predicted Class | |||
|---|---|---|---|
| Malicious | Non-Malicious | ||
| True Classes | Malicious | True Positive (TP)
0 |
False Negative (FN)
1 |
| Non-Malicious | False Positive (FP)
0 |
True Negative (TN)
99 | |
Method
One of the major questions faced in this project was how network traffic should be represented to a deep neural network. To address this challenge, the research was divided into three main phases, each proposing a new input strategy.
- Phase 1: Drawing from research conducted by Wang [1], Phase 1 explored using patterns found in the payload sections to preform flow classification. In its essence, this is the same method used by deep packet inspection, a widely used method of traffic classification. However, by utilising deep learning to find these patterns it is no longer limited to just those that can be detected by humans.
- Phase 2: Assessed the viability of using statistical features derived from a flow as inputs to a deep neural network. As these features have a higher tolerance to encryption methods and are harder to obscure, this phase aimed to construct a more robust classifier. There have been
many studies utilising this method in machine learning, the aim of this phase was extending this research by utilising a deep learning classifier.
- Phase 3: By exploiting classification methods typically found in image recognition, Phase 3 focused on representing network traffic as images based on the network traffic data and then using a convolutional neural network for classification.
This research aims to provide an extensive analysis of deep learning’s performance on traffic classification using a multitude of neural network configurations. In machine learning the parameters selected before a classifier trains are called the hyperparameters. This is to avoid confusion with the self-defined parameters the classifier will set through training. Six model hyperparameters were investigated to determine their effect on network traffic classification and are described below. TensorFlow [14] was then utilised to build and evaluate the different model architectures.
| Hyperparameters | Description and Significance |
|---|---|
| Number of nodes in the hidden layer(s) | Increases the model’s degrees of freedom, as the number of processing units and connections is increased. |
| Number of hidden layers | Each layer generates a higher order representation of the input data. |
| Padding style | Padding a flow with either zeros or random values such that each flow meets the required input length. |
| Input length | The number of bytes used from each bi-directional flow. As each input byte maps to a respective node in the input layer, the number of bytes used also determines how many nodes are present in the input layer. |
| Training/Optimization algorithm | Responsible for adjusting the connection weights to minimize the cost function. |
| Activation functions | Responsible for detecting non-linear patterns in the input data. |
| Category encoding | How the inputs and outputs are encoded. |
Data set
Deep learning benefits from a large and extensive data set and as supervised learning was to be used, this data set must also be labelled. Due to these reasons, the UNSW-NB15 data set [3, 21] was chosen as the basis for this research. Released in 2015, UNSW-NB15 contains a capture of around 1 million bi-directional flows, made up of both application and malicious traffic. This data set was generated over two separate days, for approximately 15 hours on each of the days. The data set was provided in two distinct sets of packet captures from the 22 nd of January 2015 and 17 th of February 2015. To ensure that the developed model generalises well with new data, the proposed use of this data set for this phase was to train using one set, and test with the other. By using the different sets recorded at different times, our classification results may correspond more closely to the results of classification when applied in a real scenario.
From this data set, a selection of application and malicious classes was chosen. For the application classes, the ten largest represented applications were selected. The remaining flows were group into an 11th “Unknown” class. Two different versions of data sets were then made: one for general application network traffic classification, and another for malicious traffic classification. These were developed to provide an approximately equal number of classes for training.
For the application data set, the data set from 22 Jan 2015 was used for training, while the 17 Feb 2015 data set was split into testing and validation sets, with proportions of 60% and 40%. This resulted in overall proportions of 50% training, 30% testing and 20% validation. The malicious data sets were created by merging both the 22 Jan 2015 and 17 Feb 2015 data sets together, and creating a data set of evenly distributed malicious classes, as well as an equal sized general application class. While the training set is made from the 22 Jan 2015 data set, the testing and validation sets were made by randomly sorting the 17 Feb 2015 data set and splitting the results into the 60%/40% distribution. Additionally, due to the small number of instances of the four smallest malicious classes: ANALYSIS, BACKDOOR, SHELLCODE and WORMS, these were grouped together into a single class called OTHER_MALICIOUS.
| Application Protocols | Malicious Classes |
|---|---|
| DNS | Exploits |
| FTP | Fuzzers |
| FTP-DATA | Generic |
| Mail (POP3, SMTP, IMAP) | DOS |
| SSH | Reconnaissance |
| P2P (eDonkey, Bittorrent) | Other Malicious |
| NFS | |
| HTTP | |
| BGP | |
| OSCAR | |
| Unknown |
Phase 1
Phase 1 explored network classification based on the first one thousand bytes in the payload of a bi-directional flow. As a flow is made of multiple packets, each containing their own payload, these payload sections were concatenated together until the required number of bytes was met. The data was then used to train a feedforward-backpropagation neural network. The motivation behind this phase was to reproduce and extend the work documented by Wang [1] by considering the addition of UDP flows and malicious output classes.
The first one thousand bytes of a bi-direction flow were normalised and mapped to corresponding input nodes of the classifier. Normalisation of the input values is not always required in neural networks but has been shown to help speed up the learning process.
Extensive testing was performed to find the optimal hyperparameters for application protocol classification and malicious traffic classification.
The initial number of nodes in the hidden layers was selected based on the following relationship:
Degrees of freedom = ∑ 𝐿𝑖 × 𝐿𝑖 + 1 [15]
where 𝐿𝑖 is the number of nodes in node layer i, and N is the total number of layers in the neural network (N = input layer + hidden layers + output layer).
Similar experiments were run for testing the optimal number of hidden layers. To investigate the effect in which the depth of the model had on its ability to classify network traffic, 10 models were constructed each with the same total number of nodes in their hidden layers but spread across varying depths. These depths ranged from one to ten hidden layers. From this, it could be seen that the addition of more layers did not have a conclusive effect on the testing accuracy achieved and in many cases, reduces the testing accuracy. The results also indicated that the addition of more nodes to the network has a greater effect on the model’s accuracy than the addition of hidden layers.
Padding style
For flows that did not meet the 1000-byte input length, zero and random padding were investigated. The two methods fill the remaining positions with either a 0, or a pseudorandom value between the ranges of 0 to 255, respectively.
Twenty models of various degrees of freedom were then tested with both zero and random padding. The findings indicated that for all models zero padding achieves a greater classification accuracy. As it is clear where zero padding starts, a part of this result is speculated to come from the added feature of flow length which the classifier could be identifying.
Input length
The number of inputs to the neural network is determined by how many bytes from each bidirectional flow is passed into the classifier. If the input length is too small then the classifier will be unable to detect patterns in the input, resulting in poor classification accuracies. As the input length increases, the degrees of freedom also increase, as shown in previous experiments this may lead to better accuracies.
To investigate this idea, three classifiers of varying degrees of freedom were trained on a series of input lengths ranging from 50 to 800 bytes. The classifier suffered no deterioration in the small input lengths, and therefore an input length of 50 bytes was be utilised for the subsequent experiments. This allowed for a reduced training time.
Training/Optimization Algorithm
The training algorithm (also called the optimisation algorithm) is responsible for minimising the cost function of the neural network. Adam [16] was the optimization algorithm used in all phases of this research due to its tolerance to ill-conditions and computation efficiency.
Threshold Function
The threshold function also known as the activation function is a function that is applied at every node in the NN. It is responsible for detecting non-linear patterns from the input. Rectified Linear Unit (ReLU) threshold function was used for all nodes in the neural network except those in the output layer. ReLU was chosen due to its fast computation performance and ability to accelerate convergence of gradient decent training algorithms. Softmax threshold function was used at the output layer because its output can be interpreted as raw probabilities.
Category Encoding
The number of nodes required for the input and output layers is determined by how the input and output categories are encoded. The network application classes and malicious classes are chosen to have no intrinsic ordering. Therefore, the value assigned to each output category does not matter as long as each value is unique. 1-of-C (sometimes referred to as “one-hot encoding”) is the most common encoding technique used for output encoding for a feed forward backpropagation neural network. 1-of-C encoding works by assigning each classification category a position in a vector. Each position in the vector is set to zero except for the corresponding output category.
Phase 2
The aim of this phase is to classify network traffic flows using extracted flow metadata from the packet captures. Unlike the other project phases which focus on detecting binary patterns inside the packets and data streams, this phase measures properties of each network flow for classification. For example, below is a list of some of the derived features that can be measured and used for network classification:
- Port number
- Total number of packets sent during a flow's lifetime
- Frequencies of packets sent from the client to the server
- Lifetime of the network flow
These network features can be automatically extracted from the network traffic using an exporter program and a collector program. An exporter collects low level flow information and formats it for the collector. The collector calculates high level features based on the flow information provided to it and then displays the result typically in a human readable format.
Chosen Feature Exporters
Maji and Tranalyzer were chosen as the main feature exporters based on their good classification results by Haddadi and Zincir-Heywood [17], and their compatibility with each other – both exporting features for uni-directional flows. This step was not performed in depth as it was expected that the deep learning model would automatically learn the most influential features, and be less affected by unimportant features.
Feature Extraction
Approximately 130 features were used in Phase 2 that were collected from two feature exporters. Only a minimal amount of research was put into the correlation of these features in regard to the network protocols and applications.
Feature Set Manipulation
Several features were then removed from the feature sets, as they were not relevant or were repeated. The features which were removed included:
- IPv4 addresses
- Internet Protocol Version 6 (IPv6) features
- MAC addresses
- ICMP related features
- First and last packet times in milliseconds and seconds
IPv4 addresses and MAC addresses were removed as they do not contain information that could contribute to classification outside of this data set. IPv6 features were discarded as the UNSW-NB15 data set did not contain any IPv6 packets. ICMP features were removed as we aimed to classify purely TCP and UDP flows. The first and last packet times were discarded because other features contained the packet times in microseconds, which were more accurate. After the removal of the features listed above, and the addition of two features which were provided with the ground truth labels – the bidirectional start and end times – 105 features remained.
Normalising Feature Data
To ensure each feature affects the neural network model fairly, and assist with convergence of the model, the input data was normalised to values between zero and one. This normalisation was based on the minimum and maximum of each numerical feature, and scaling the value linearly. Features which used strings were converted to a number using a pre-defined translation, and then scaled in a similar method to the numerical features.
In the early stages of determining optimal model parameters, training was performed on 21 different models, and these tests indicated that a model with two hidden layers would offer the greatest testing accuracies and also keep computation time to a reasonable level, similar to the results of Phase 1. Subsequent tests therefore primarily used similar models.
Number of nodes in each layer
The number of nodes in the hidden layers were varied. For application and malicious traffic classification, using 500 nodes in both hidden layers proved effective. For malicious detection, a simpler model with 200 nodes in the first hidden layer and 30 nodes in the second hidden layer proved most effective.
Dropout
The training accuracy of the preliminary results was reaching significantly higher values than the testing and verification accuracies, and hence there was the possibility that overfitting was occurring. To gain optimal performance, a dropout stage was implemented after applying the activation function, which would encourage the use of more features rather than overdependence on a select few, as well as reducing overfitting.
Three configurations of dropout were tested. Each value represents the retention rates - the probability for which a node is retained:
- 0.5 in first hidden layer, 0.5 in subsequent hidden layers
- 0.85 in first hidden layer, 0.5 in subsequent hidden layers
- 0.95 in first hidden layer, 0.75 in subsequent hidden layers
The dropout retention rates which proved most effective were 0.85 and 0.5 for the first and second hidden layers respectively, which were used in subsequent training. This is based on an extensive application test, and an extensive malicious test in which the maximum accuracies were achieved using these dropout rates. This proved effective for some classification types and hence models were trained with and without dropout.
Selection of input features
Another parameter that was adjusted was the selection of input features that the models trained with. As seen in Phase 1, reducing the number of input bytes from the first 1000 to the first 50 bytes resulted in similar results but require a less complex model. The effects of performing similar actions were therefore investigated in Phase 2. Additionally, by removing any features which did not contribute useful information to the output classification, the number of input features could potentially be decreased with no negative effects. To investigate this for Phase 2, the following investigations were proposed:
- Feature Selection: Removing input features based on the accuracies returned, training the model with the removed features, and continuing with the model with the highest validation accuracy.
- Random Feature Removal: Removing an individual input feature at random, training the model with this removed feature, and continuing by removing the next randomly selected feature.
- Individual investigation: Investigating each of the features, finding their relevance to the classifier and analysing the numeric or string values of each feature.
Due to the nature of this Phase, the removal of input features is less trivial than for Phase 1. Phase 1 found that the first 50 bytes could be used to train a model with a similar accuracy to using 1000 bytes. The basis behind this idea is that the most relevant data for classification is earlier in the flow. For Phase 2, however, the features extracted from Maji and Tranalyzer are in no order of relevance to classifying the flow, and alternative methods must be used to reduce the number of input features effectively. Method 1. Feature Selection unfortunately required many separate sequences of training which required an infeasible duration of training time. By limiting the input data set size and/or the number of epochs of training, the model could not produce results that accurately represented the potential of a fully trained model.
Method 2. Random Feature Removal was implemented for application protocol classification to give insight into the effects of random feature removal and the overall trends if less features were used in the data set. To reduce the required time taken to train each model, the input data set was reduced to 20% of the full size, and the number of epochs of training was limited to 30. Results would indicate whether the removal of features corresponds proportionally to a decrease in model accuracy.
Through Method 3. Individual investigation of the features it was found that some features were not relevant in description to the classification, and the numeric or string data for some features was redundant. The removal of some of these features helped improve testing classification accuracy in some models. Therefore, for subsequent training, two separated models were often trained – one set of training using all input features, and one set of training performed with the selection of features removed.
Phase 3
The first two phases of this project have investigated the use of pre-existing network traffic techniques and how deep learning can be used to improve these methods. Phase 3 aimed to reverse this process. By evaluating the areas that deep learning is especially good at, Phase 3 investigated whether network traffic can be represented in a way such to utilise a method specifically designed for deep learning. CNNs are highly versatile networks that are able to search through a given input for features rather than evaluating the entire input at once; compared to a typical fully connected network, such as the one used in Phase 1 and 2, this allows a CNN to classify much larger inputs without drastically affecting the complexity and training time of the model. While most CNNs are commonly utilised for image classification, CNNs have shown promising results for other fields of research such as audio classification [18].
Data Set Generation
Particular research was put into how the data should be placed in an image. For a CNN to be an effective classifier the two input coordinates must have meaning. For example, the x and y coordinates of a picture relate to a spatial coordinate system, swapping any two rows or columns would reduce the quality of this picture. With this in the mind, the rows and columns of the generated image were made to emulate the progression of the flow. Each subsequent row of the generated image is a new packet in the flow, with the bytes contained in the respective packet filling out the columns. The colour of each individual pixel in the image is a greyscale colour which represents a single byte in the packet. As the dynamic range of greyscale varies from black (represented by the value 0) to white (represented by the value 255), this therefore becomes a one-to-one mapping with the 256-value range of a byte.
The images were broken down into four sections. The sections were designated such that particular areas of the flow could be identified. The flows were separated both by their respective header and payload sections, and by which side of the bi-directional flow the packet originated from. As the header and payload sections of a packet play vastly distinct roles, methods can be utilised to treat these sections differently. A summary of the final flow image section dimensions is shown below:
| Section | Pixels |
|---|---|
| Header | 96 |
| Payload | 1476 |
| Client to Server | 61 |
| Server to Client | 63 |
CNN Architecture
Features defined by a CNN are independent of the location they are found in. In image recognition, this is an extremely useful property as the location of objects in a picture are rarely in the same place. For example, in facial recognition it is just as important to detect a face in the centre of the image as it is to detect one on the edge. Without location independent features, the classifier would have to manually define distinct features for every section of the image. The use of two CNN architectures were therefore evaluated. The first, a conventional CNN classifier which scans the entire flow image for features. The second, a Siamese CNN classifier, named for the concatenation of two CNN networks, which identifies features from the payload and header sections separately.
Conventional CNN
While the architecture used in this section can be seen as wasteful, it does allow the classifier more autonomy. By allowing the classifier to choose features from either the payload or head section (or both), the model can decide which section is least important and designate fewer features to it. A simple CNN classifier, consisting of one CNN layer and 2 fully connected layers, was used to evaluate this method.
Siamese CNN
The Siamese classifier makes use of two conventional CNN classifiers. Utilising one for the header section of the flow image and one for the payload, this method restricts the search to either the payload or header sections. This eliminates the wasted resources caused by searching for section specific features in the opposite section. To create a final prediction, the output of the two conventional CNN classifiers are then concatenated using a fully connected layer.
Comparison of Architectures
To compare the two architectures, both were used to find ten features from the application data set. The Siamese classifier utilised five features from each of the header and payload sections, whereas the conventional classifier can define features from either section for up to a total of ten. For comparison, two configurations of each architecture were trained. These configurations were set to give an equal number of weights to each classifier.
Results showed to differ dramatically in favour of the Siamese classifier. It is speculated that this result is affected by a similar phenomenon as the input length experiment given in Phase 1. As the conventional classifier is considering the entire flow image, it takes longer to converge on a set of optimal features. Whereas, the Siamese classifier is considering two smaller area sizes that have a higher degree of similarity. It is speculated that given enough time the conventional CNN would converge to a similar classification as found from the Siamese CNN.
As the Siamese architecture converged faster and allowed for a greater level of control in regard to selection of hyperparameters of the classifier, this architecture was utilised for the subsequent experiments.
Hyperparameter Tuning
As with Phase 1 and 2, the Siamese classifier was then optimised for network traffic classification. As the configuration is highly dependent on the input, optimisation of deep learning is often done empirically. The configurations for each hyperparameter experiment can be seen in the table below. Due to the similarities between performance of these experiments, not every combination was evaluated. Each hyperparameter was examined individually and the configuration with the highest performance was kept for the next experiment.
| Header Window | Payload Window | Header Features | Payload Features |
|---|---|---|---|
| 5 x 5 | 5 x 5 | 5 | 5 |
| 10 x 10 | 10 x 10 | 10 | 10 |
| 15 x 15 | 15 x 15 | 15 | 15 |
| 20 x 20 | 20 x 20 | 20 | 20 |
The following sections display the effects of adjusting each of these parameters.
Window Size
The size of a CNN layers’ window (also known as the kernel size) depicts how much of the input will be seen at any one time. By increasing this window size, patterns can be found in values with a higher degree of spatial separation. However, it was found in [19] that convolutional layers with larger windows sizes tend to be disproportionally expensive in regard to their computational cost. This result was confirmed during these experiments as the variation between the smallest and largest combinations resulted in a 10-fold increase in training time and a reduction in performance. No trend with the accuracy was observed by increasing the size of the header window, but a maximum performance was shown to occur when the window size was 10 x 10 pixels.
Feature Depth
The feature depth (also known as the number of feature maps) defines the number of patterns the convolutional layer will evaluate. Increasing the number of features found in the header section of the Siamese network resulted in a slight decrease in classification accuracy. It is theorised that this negative correlation could be mitigated by the tuning of other hyperparameters, such as the number of nodes in the fully connected layers. However, as the benefit of this method was shown to be disproportionate to the efficiency of the classifier, this was theory was not investigated further.
Results
Phase 1
Application Classification
From the training process outlined previously, the performance of the model was then evaluated. Taking just under 50 hours to train, the classifier resulted in an overall classification accuracy of 96.9 % on the testing set. To examine the misidentified flows, a confusion matrix, and precision and recall graphs were constructed.
Malicious Traffic Classification
In a similar fashion to the application results, a classifier was then trained and evaluated over the malicious data set. The malicious classifier not only detected malicious activities but also had to classifying the type of malicious activity. Taking just over 22 hours to run, the malicious classifier achieved a classification accuracy of 94%.
Malicious Traffic Detection
Phase 1 correctly identified 93% of the malicious samples as malicious.
Phase 2
Application Classification

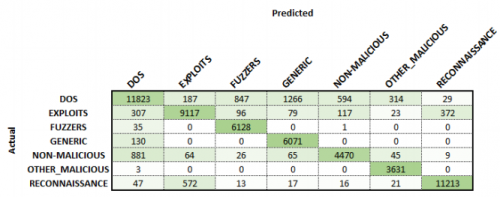

Malicious Traffic Classification
Malicious Traffic Detection
Phase 3
Application Classification
Taking just under 30 hours to train, the classifier resulted in an overall classification accuracy of 99.5% on the testing set, an improvement on both Phase 1 and 2. Training for 24 hours, the malicious classifier achieved an overall classification accuracy of 81.5%.
Malicious Traffic Classification
Malicious Traffic Detection
